Carl Zeiss lens for Fuji X-Mount - Touit

Carl Zeiss just released detailed technical specification of the new Zeiss Lens for the Fuji X Mount (Fuji X-Pro1, Fuji X-E1). While an exact release date is not set yet, we expect them to be available in June 2013. Since there’s a lot of information scattered all over the Internet, we’re going to do our best to collect them here.

The Zeiss lens is now available for pre-order. Shipping June 2013.

Specification

We were very exited to hear that Zeiss is going to release an autofocus lens for the X-Mount. Since we have been using the Fuji X-E1 with Zeiss ZM lenses (Leica M Mount) for quite some time, we are satisfied with the performance of both camera and glass but were never quite happy with the manual focus on the Fuji.

	Touit 1.8/32	XF35mmF1.4 R	Touit 2.8/12	XF14mmF2.8 R
Retail Price	Euro 799	Euro 579	Euro 1099	Euro 800
Avaliability	~ June 2013	Available	~ June 2013	Available
Brand	Carl Zeiss	Fujifilm	Carl Zeiss	Fujifilm
Lens Design	Planar		Distagon
Focal length	32 mm	35 mm	12 mm	14 mm
Equivalent on Sensor	48 mm	52.5	18 mm	21 mm
Aperture range	f/1.8 – f/22	f/1.4 – f/16	f/2.8 – f/22	f/2.8 – f/22
Aperture blades	9, rounded	7, rounded	9, rounded	7, rounded
Aperture stops	1/3EV	1/3EV (22 stops)	1/3EV	1/3EV (19 stops)
Focusing range	0,37 m – ∞	0,28 m – ∞	0,18 m – ∞	0,18 m – ∞
Number of elements / groups	8/5	8/6	11/8	10/7
Angular field, diag./horiz./vert.	48° / 40° / 29°	44.2°	99° / 89° / 66°	89°
Coverage at close range	214 x 142 mm		220 x 144 mm
Filter thread	M52 x 0,75	M52	M67 x 0,75	M58
Dimensions (with caps)	72 mm	54.9 mm	86 mm	58.4 mm
Diameter of focusing ring	65 mm	65 mm	86 mm	65 mm
Weight	210 g	187 g	270 g	233.8 g

If you want to find out more about the lens, have a look at the following Zeiss PDF’s:

Touit 2.8/12 Data Sheet Touit 1.8/32 Data Sheet Brochure

Design

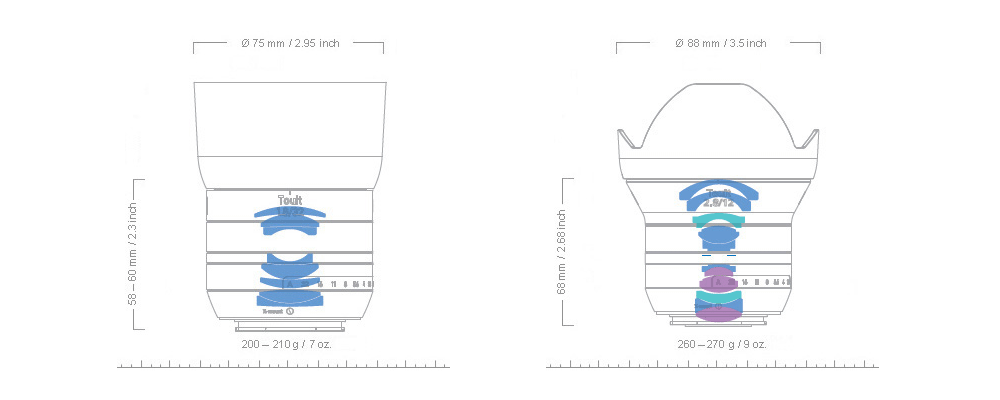

The 32 mm Touit (Planar) is on the left, the 12 mm Touit (Distagon) on the right.

Design of Touit Planar & Distagon Lens

MTF Curve

Unfortunately Carl Zeiss has not released any MTF curve yet. We’ll be posting one as soon as they turn up.

[Update] The MFT curve has been published: Touit 2.8/12 MFT Curve Touit 1.8/32 MFT Curve

Aperture Blades

“The Touit lenses feature a nine-blade iris that closes to create an almost perfectly circular aperture.”

Material

Here’s what the Carl Zeiss team has to say about the built quality and material:

“The mirrorless system cameras are lighter and more compact than SLR cameras. With our new lenses for this camera system we are continue the development of our high quality lens concept while simultaneously aiming at a relatively light-weight design. For the mechanical components we looked for the best compromise between the quality of the material and the product’s total weight. For this reason, we decided to use a combination of materials. For parts that do not require metal for accuracy, solidity or durability, we have incorporated lighter materials such as plastic.” - Source

Comparison

A retailer in brussels had the chance to test-drive the lens. You can find the images on his Facebook

Images

Carl Zeiss Touit 32 mm Sample Image

The Touit 32 mm produces very soft, pleasant bokeh. - Source

Carl Zeiss Touit 12 mm Sample Image

The Touit 12 mm looks like a great wide angle lens for the Fuji. - Source

Update 1

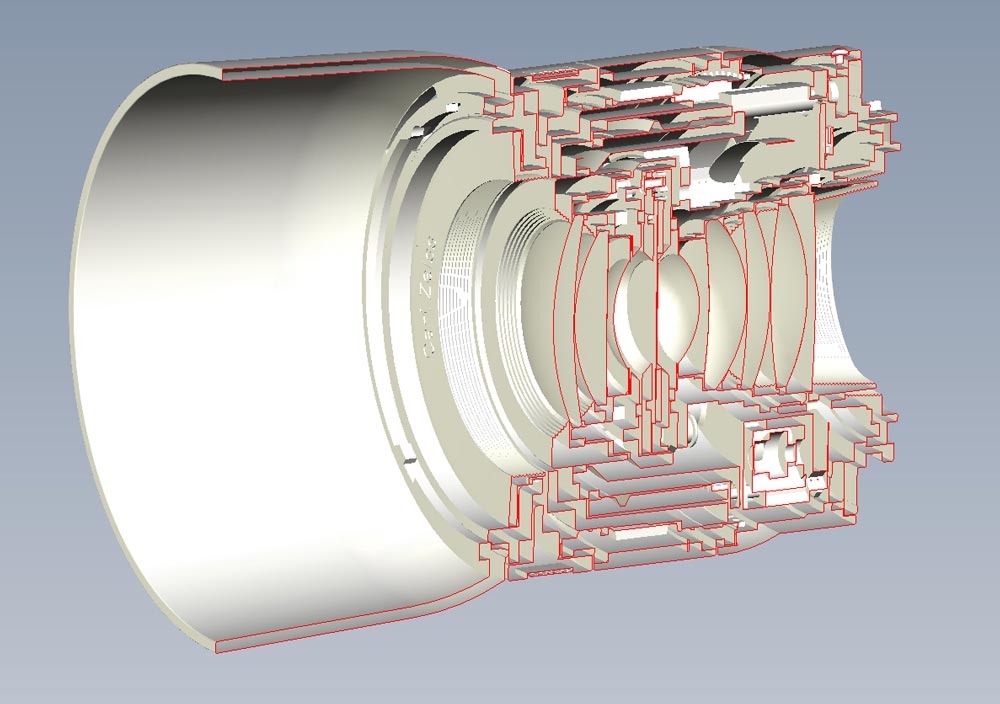

Carl Zeiss Touit 32 mm Cross Section

Cross section of the Touit 1.8/32. - Source
